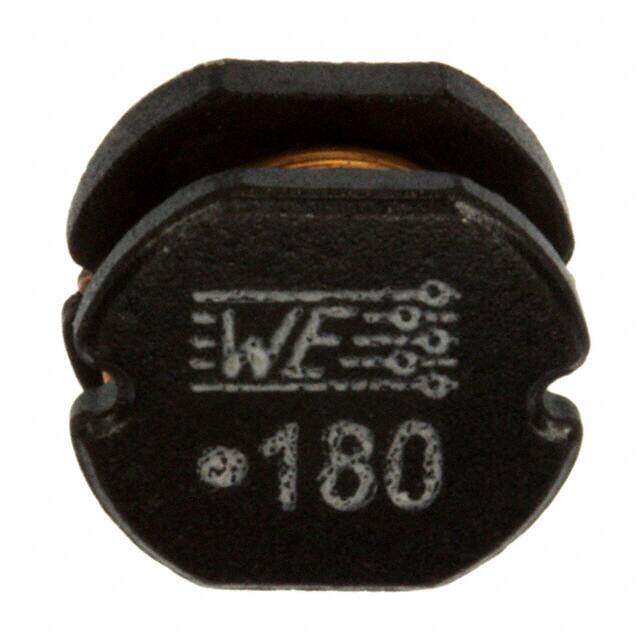

744776118
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 18UH 2.36A 90 MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.973623
≥1 USD $1.973623
≥10 USD $1.861911
≥100 USD $1.756509
≥500 USD $1.657087
≥1000 USD $1.563292
Inventory: 1103
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.232 5.90mm
Technical
Inductance Tolerance 20%
Current - Saturation 2.43A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 19MHz
DC Resistance (DCR) 90mOhm Max
Inductance 18μH
Shielding Unshielded
Current Rating (Amps) 2.36A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
