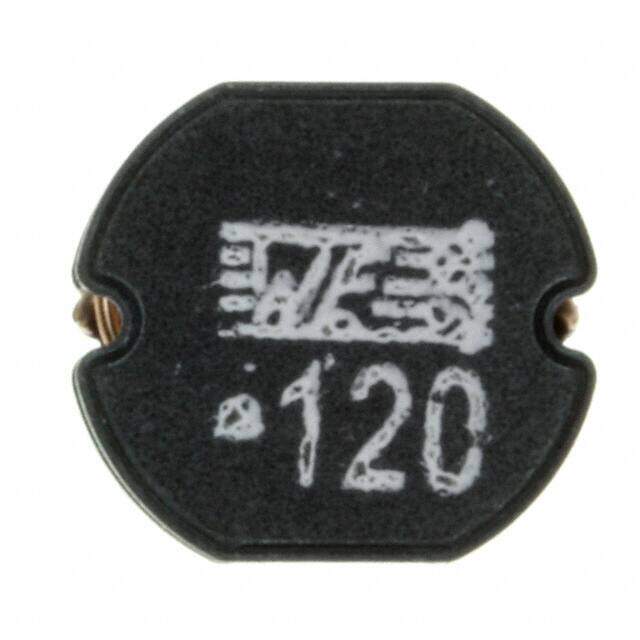

744776112
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 12muH
PDF
/
Buying Options
Total Price: USD $19.23
Unit Price: USD $19.2318
≥1 USD $19.2318
≥10 USD $15.7795
≥100 USD $15.28645
≥500 USD $14.7934
≥1000 USD $14.30035
Inventory: 1185
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 8.9916mm
Length 10.0076mm
Height Seated (Max) 0.232 5.90mm
Height 5.4mm
Technical
RMS Current (Irms) 2.72A
Inductance Tolerance 20%
Current - Saturation 3.15A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 23MHz
Max DC Current 2.72A
DC Resistance (DCR) 70mOhm Max
Test Frequency 10kHz
Inductance 12μH
Current Rating 2.72A
Shielding Unshielded
Current Rating (Amps) 2.72A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 70mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
