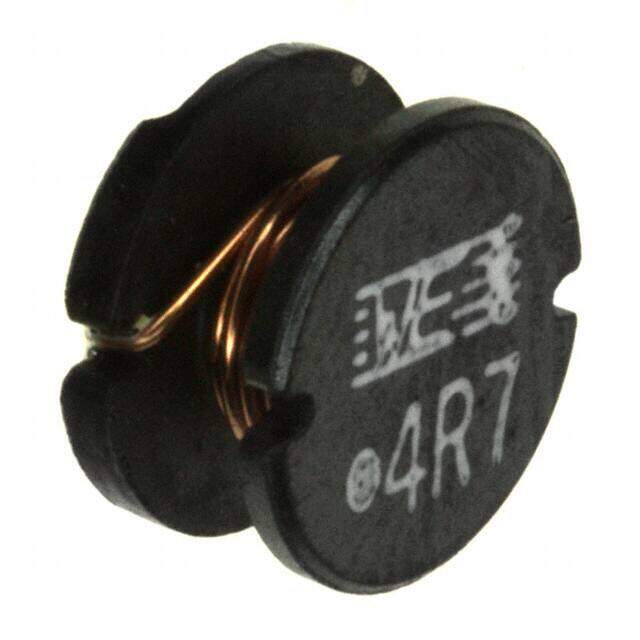

744776047A
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.374Lx0.374W 9.50mmx9.50mm 4.7muH
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.018244
≥1 USD $2.018244
≥10 USD $1.904002
≥100 USD $1.796232
≥500 USD $1.694548
≥1000 USD $1.598639
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.374Lx0.374W 9.50mmx9.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 4A
Shielding Unshielded
Current Rating 4A
Inductance 4.7μH
Test Frequency 1kHz
DC Resistance (DCR) 40mOhm Max
Max DC Current 4A
Frequency - Self Resonant 40MHz
Q @ Freq 33 @ 7.96MHz
Inductance Frequency - Test 1kHz
Dimensions
Diameter 9.5mm
Height 5.5118mm
Height Seated (Max) 0.228 5.80mm
Length 9.4996mm
Width 9.4996mm
Compliance
RoHS Status ROHS3 Compliant
