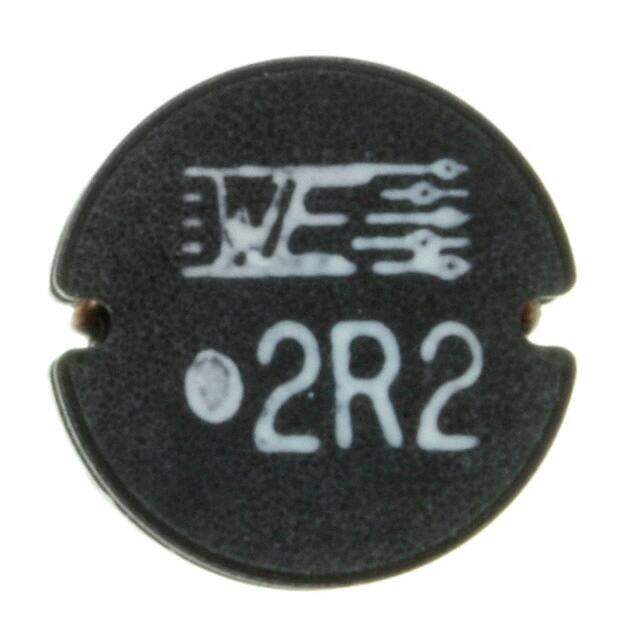

744776022A
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 2.2UH 5.4A 20 MOHM SMD
PDF
/
Inventory: 9230
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.228 5.80mm
Technical
Inductance Frequency - Test 1kHz
Q @ Freq 35 @ 7.96MHz
Frequency - Self Resonant 68MHz
DC Resistance (DCR) 20mOhm Max
Inductance 2.2μH
Shielding Unshielded
Current Rating (Amps) 5.4A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.374Lx0.374W 9.50mmx9.50mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
