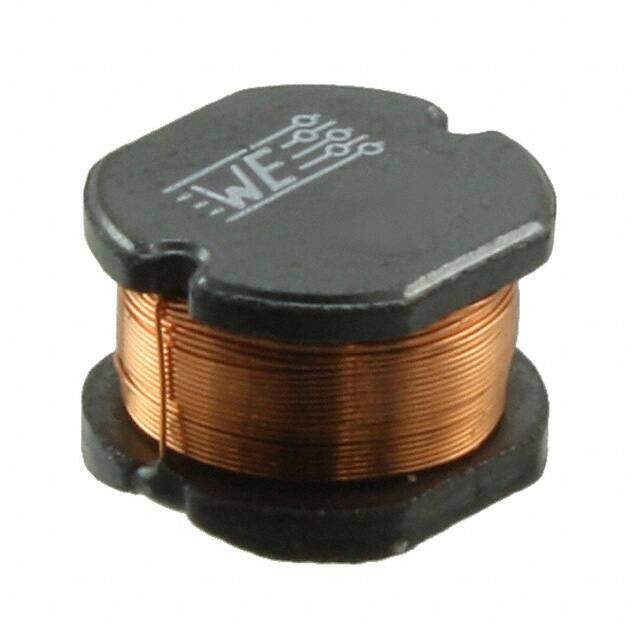

744775360 image
Favorite
744775360 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-ASI Nonstandard 0.315Lx0.276W 8.00mmx7.00mm 6mH
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.98
≥1 USD $1.98
≥10 USD $1.9536
≥100 USD $1.8128
≥500 USD $1.6808
≥1000 USD $1.5488
Inventory: 492
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 7.0104mm
Length 8.001mm
Height Seated (Max) 0.217 5.50mm
Height 5mm

Technical

RMS Current (Irms) 180mA
Inductance Tolerance 10%
Current - Saturation 90mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 600kHz
Max DC Current 180mA
DC Resistance (DCR) 18Ohm Max
Test Frequency 1kHz
Inductance 6mH
Lead Pitch 2mm
Current Rating 180mA
Shielding Unshielded
Current Rating (Amps) 180mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 16.7Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.315Lx0.276W 8.00mmx7.00mm
Series WE-ASI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
