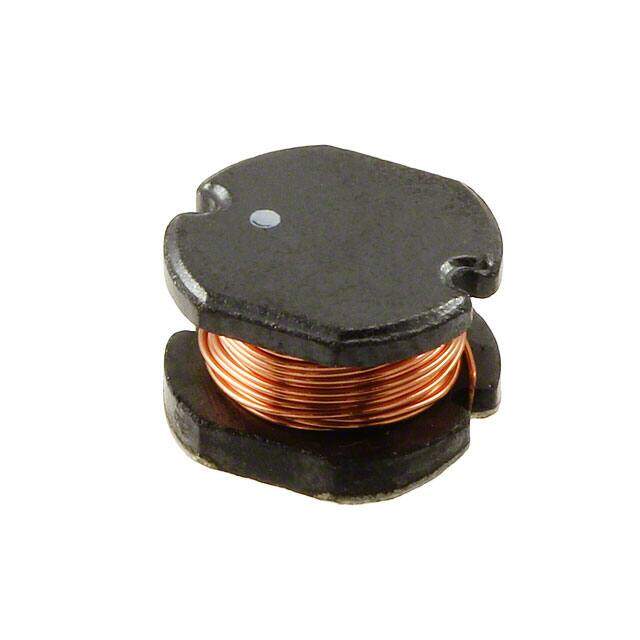

744775239 image
Favorite
744775239 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 390muH
PDF
/
Inventory: 5767
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 7.8mm
Length 7mm
Height Seated (Max) 0.217 5.50mm
Height 5mm

Technical

RMS Current (Irms) 380mA
Inductance Tolerance 10%
Current - Saturation 430mA
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 3.9MHz
Max DC Current 380mA
DC Resistance (DCR) 1.77Ohm Max
Test Frequency 10kHz
Inductance 390μH
Current Rating 380mA
Shielding Unshielded
Current Rating (Amps) 380mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 1.77Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±10%
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Series WE-PD2
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
