744775218
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

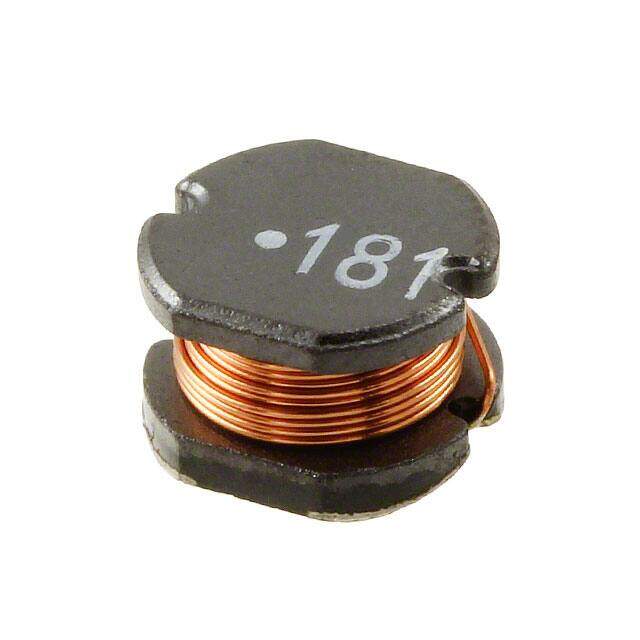

WE-PD2 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 180muH
PDF
/
Inventory: 3089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD2
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±10%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 710mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 550mA
Shielding Unshielded
Current Rating 550mA
Inductance 180μH
Test Frequency 10kHz
DC Resistance (DCR) 710mOhm Max
Max DC Current 550mA
Frequency - Self Resonant 5.8MHz
Inductance Frequency - Test 10kHz
Current - Saturation 570mA
Inductance Tolerance 10%
RMS Current (Irms) 550mA
Dimensions
Height 5mm
Height Seated (Max) 0.217 5.50mm
Length 7mm
Width 7.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
