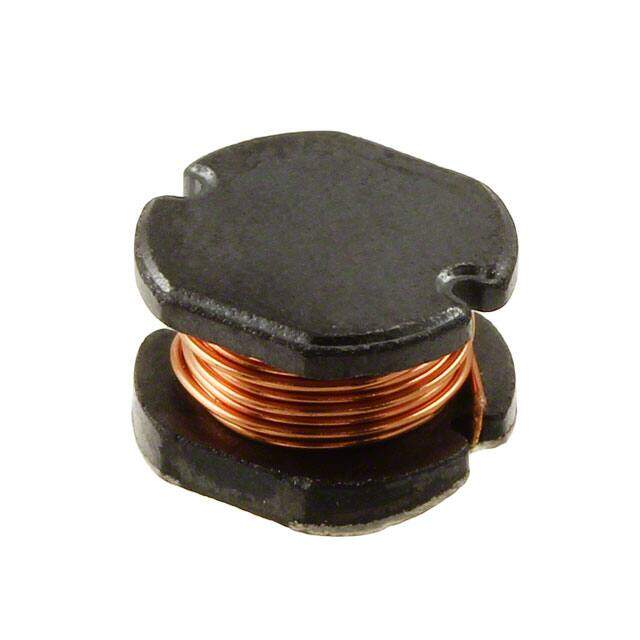

744775210 image
Favorite
744775210 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 120μH Unshielded Wirewound Inductor 670mA 470mOhm Max Nonstandard
PDF
/
Buying Options
Total Price: USD $14.91
Unit Price: USD $14.9093
≥1 USD $14.9093
≥10 USD $12.2341
≥100 USD $11.85125
≥500 USD $11.46935
≥1000 USD $11.0865
Inventory: 10002
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.217 5.50mm

Technical

Current - Saturation 810mA
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 7MHz
DC Resistance (DCR) 470mOhm Max
Inductance 120μH
Shielding Unshielded
Current Rating (Amps) 670mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±10%
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Series WE-PD2
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
