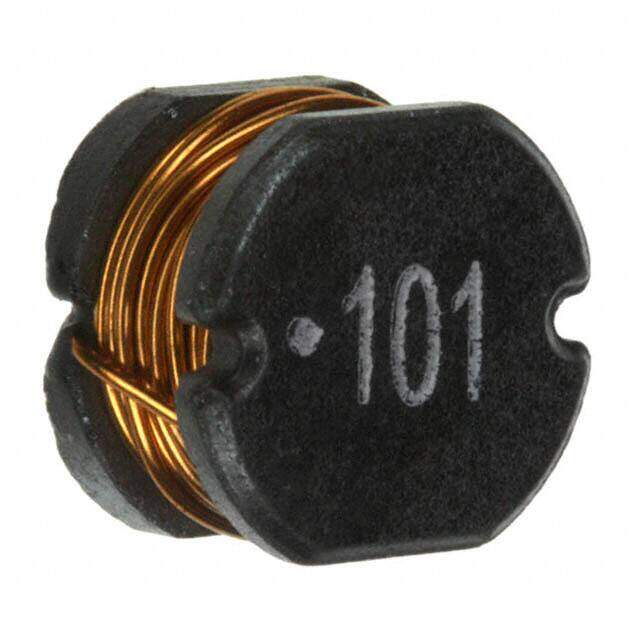

74477520
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 100UH 770MA 430 MOHM
PDF
/
Buying Options
Total Price: USD $19.14
Unit Price: USD $19.1406
≥1 USD $19.1406
≥10 USD $15.7054
≥100 USD $15.2152
≥500 USD $14.72405
≥1000 USD $14.2329
Inventory: 3848
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.217 5.50mm
Technical
Inductance Tolerance 10%
Current - Saturation 860mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 8MHz
DC Resistance (DCR) 430mOhm Max
Inductance 100μH
Shielding Unshielded
Current Rating (Amps) 770mA
Resistance 208mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
