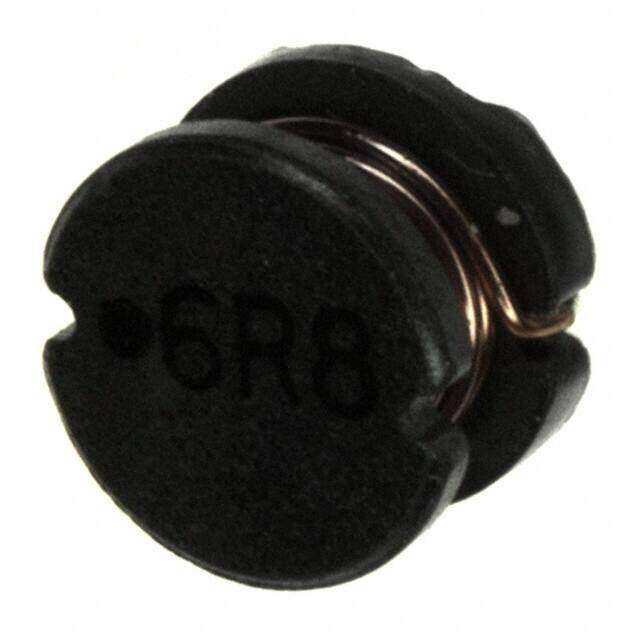

744775068A
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.295Lx0.295W 7.50mmx7.50mm 6.8muH
PDF
/
Buying Options
Total Price: USD $18.86
Unit Price: USD $18.8575
≥1 USD $18.8575
≥10 USD $15.47265
≥100 USD $14.9891
≥500 USD $14.50555
≥1000 USD $14.022
Inventory: 1934
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.493mm
Length 7.493mm
Height Seated (Max) 0.197 5.00mm
Height 5.0038mm
Diameter 7.5mm
Technical
Q Factor 30
Inductance Frequency - Test 1kHz
Q @ Freq 30 @ 7.96MHz
Frequency - Self Resonant 33MHz
Max DC Current 3.2A
DC Resistance (DCR) 40mOhm Max
Test Frequency 1kHz
Inductance 6.8μH
Current Rating 3.2A
Shielding Unshielded
Current Rating (Amps) 3.2A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.295Lx0.295W 7.50mmx7.50mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
