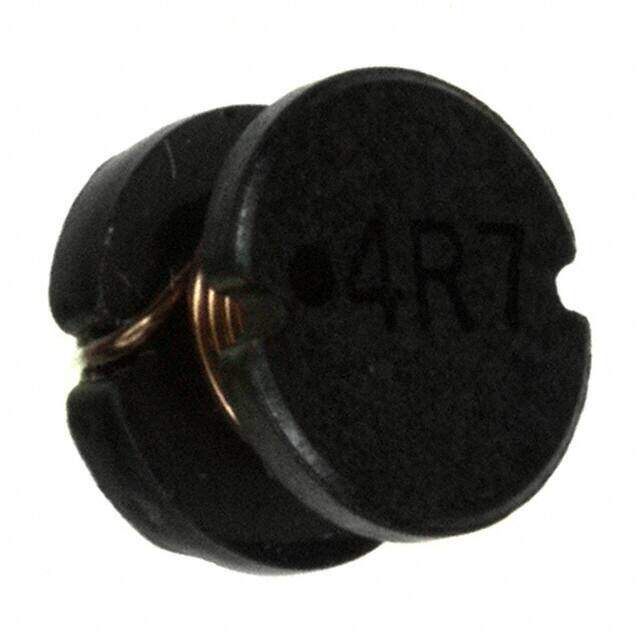

744775047A
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.295Lx0.295W 7.50mmx7.50mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.933629
≥1 USD $1.933629
≥10 USD $1.824176
≥100 USD $1.720921
≥500 USD $1.623511
≥1000 USD $1.531613
Inventory: 1144
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.295Lx0.295W 7.50mmx7.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 3.7A
Shielding Unshielded
Current Rating 3.7A
Inductance 4.7μH
Test Frequency 1kHz
DC Resistance (DCR) 30mOhm Max
Max DC Current 3.7A
Frequency - Self Resonant 38MHz
Q @ Freq 31 @ 7.96MHz
Inductance Frequency - Test 1kHz
Q Factor 31
Dimensions
Diameter 7.5mm
Height 5.0038mm
Height Seated (Max) 0.197 5.00mm
Length 7.493mm
Width 7.493mm
Compliance
RoHS Status ROHS3 Compliant
