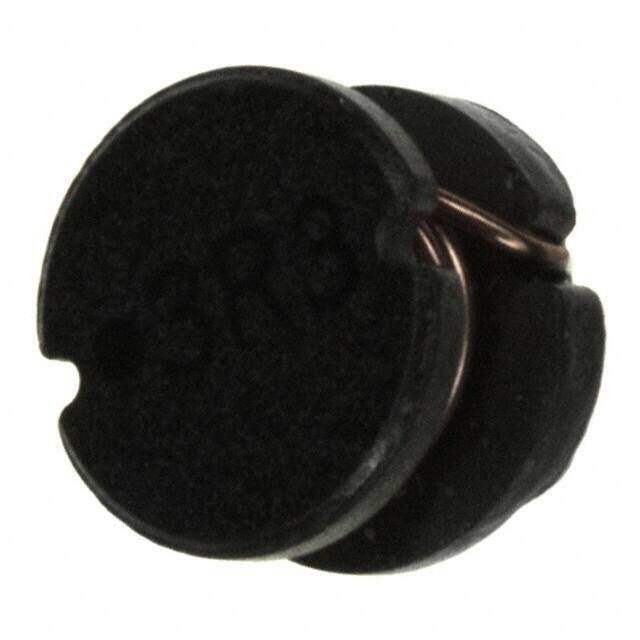

744775033A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 2-SMD 0.295Dia 7.50mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.84
Unit Price: USD $1.843044
≥1 USD $1.843044
≥10 USD $1.738721
≥100 USD $1.640301
≥500 USD $1.547455
≥1000 USD $1.459871
Inventory: 1134
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.209 5.30mm
Height 5mm

Technical

Q Factor 32
Inductance Frequency - Test 1kHz
Q @ Freq 32 @ 7.96MHz
Frequency - Self Resonant 55MHz
Max DC Current 4.6A
DC Resistance (DCR) 20mOhm Max
Test Frequency 1kHz
Inductance 3.3μH
Current Rating 4.6A
Shielding Unshielded
Current Rating (Amps) 4.6A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.295Dia 7.50mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
