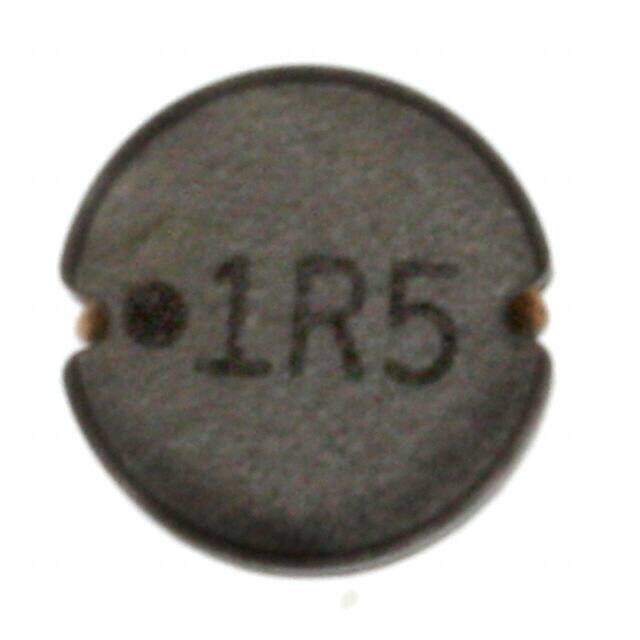

744775015A image
Favorite
744775015A image
Favorite

744775015A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.295Lx0.295W 7.50mmx7.50mm 1.5muH
PDF
/
Inventory: 9852
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.295Lx0.295W 7.50mmx7.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 6A
Shielding Unshielded
Current Rating 6A
Inductance 1.5μH
Test Frequency 1kHz
DC Resistance (DCR) 20mOhm Max
Max DC Current 6A
Frequency - Self Resonant 120MHz
Q @ Freq 32 @ 7.96MHz
Inductance Frequency - Test 1kHz

Dimensions

Diameter 7.5mm
Height 5.0038mm
Height Seated (Max) 0.197 5.00mm
Length 7.493mm
Width 7.493mm

Compliance

RoHS Status ROHS3 Compliant
