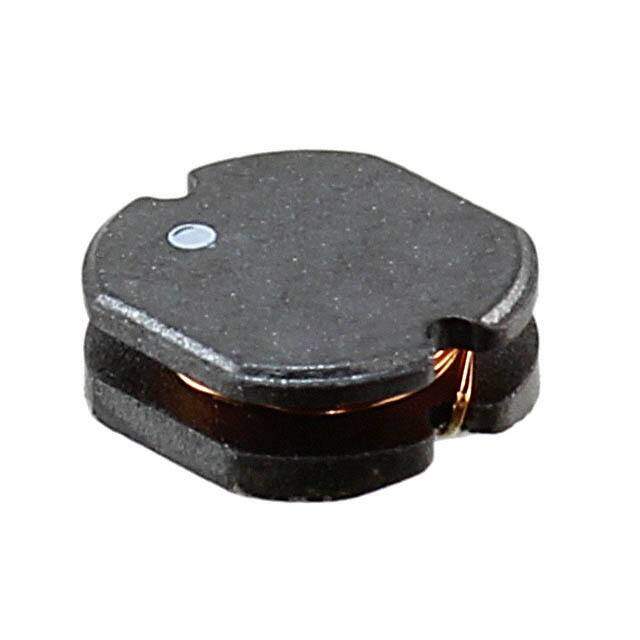

7447745330
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 33muH
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.98
≥1 USD $1.98
≥10 USD $1.892
≥100 USD $1.70104
≥500 USD $1.57608
≥1000 USD $1.51272
≥3000 USD $1.38688
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.8mm
Length 5.2mm
Height Seated (Max) 0.091 2.30mm
Height 2mm
Technical
RMS Current (Irms) 900mA
Inductance Tolerance 20%
Current - Saturation 900mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 10MHz
Max DC Current 900mA
DC Resistance (DCR) 520mOhm Max
Test Frequency 100kHz
Inductance 33μH
Current Rating 900mA
Depth 5.8mm
Shielding Unshielded
Current Rating (Amps) 900mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 520mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
