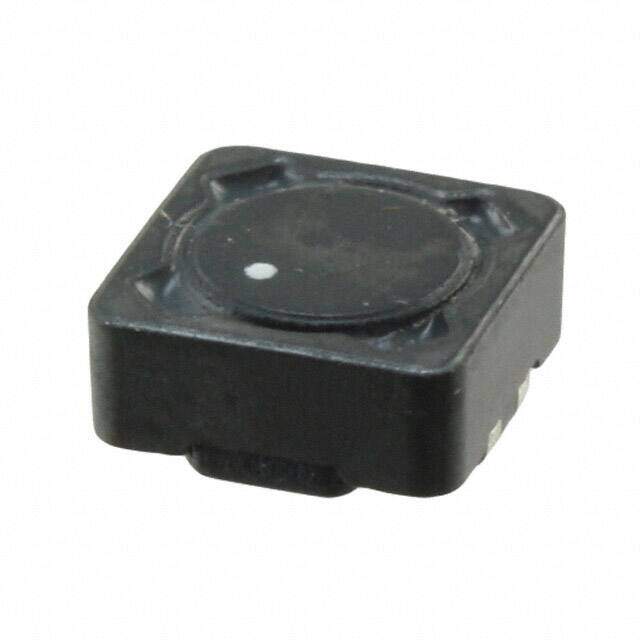

7447745220
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
22μH Unshielded Wirewound Inductor 1.05A 330mOhm Max Nonstandard
PDF
/
Buying Options
Total Price: USD $14.08
Unit Price: USD $14.079
≥1 USD $14.079
≥10 USD $11.552
≥100 USD $11.191
≥500 USD $10.83
≥1000 USD $10.469
Inventory: 1083
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.05A
Shielding Unshielded
Inductance 22μH
DC Resistance (DCR) 330mOhm Max
Frequency - Self Resonant 24MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.2A
Dimensions
Height Seated (Max) 0.091 2.30mm
Compliance
RoHS Status ROHS3 Compliant
