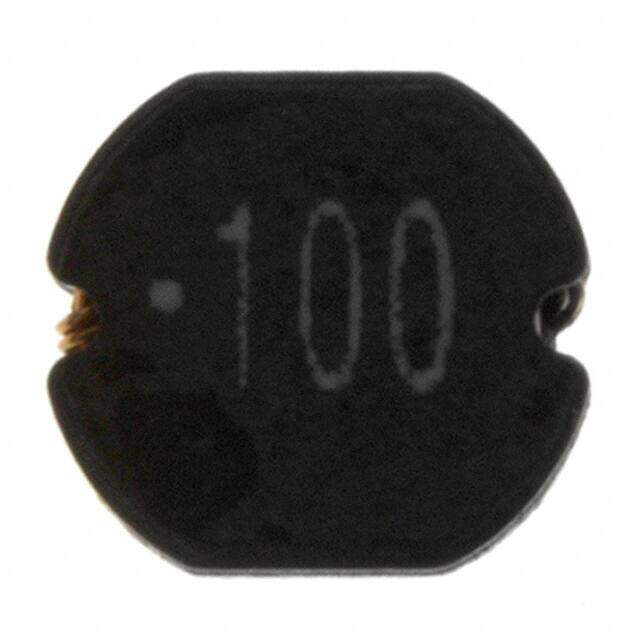

7447745100

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 10muH
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6456
≥1 USD $1.6456
≥10 USD $1.57608
≥100 USD $1.41856
≥500 USD $1.31296
≥1000 USD $1.26104
≥3000 USD $1.15544
Inventory: 1143
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 5.207mm
Length 5.7912mm
Height Seated (Max) 0.091 2.30mm
Height 2mm

Technical

RMS Current (Irms) 1.7A
Inductance Tolerance 20%
Current - Saturation 1.6A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 28MHz
Max DC Current 1.7A
DC Resistance (DCR) 130mOhm Max
Test Frequency 100kHz
Inductance 10μH
Current Rating 1.7A
Depth 5.8mm
Shielding Unshielded
Current Rating (Amps) 1.7A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 130mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
