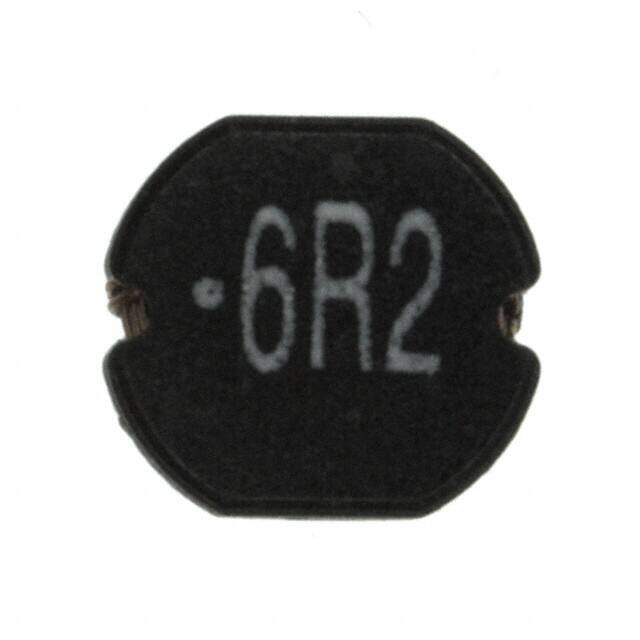

7447745062
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 6.2muH
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.548902
≥1 USD $1.548902
≥10 USD $1.461234
≥100 USD $1.378515
≥500 USD $1.300485
≥1000 USD $1.226878
Inventory: 1182
Minimum: 1
-
+
Technical Details
Technical
Shielding Unshielded
Depth 5.8mm
Current Rating 2.1A
Inductance 6.2μH
Test Frequency 100kHz
DC Resistance (DCR) 90mOhm Max
Max DC Current 2.1A
Frequency - Self Resonant 30MHz
Inductance Frequency - Test 100kHz
Current - Saturation 2A
Inductance Tolerance 20%
RMS Current (Irms) 2.1A
Current Rating (Amps) 2.1A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 90mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Dimensions
Height 2mm
Height Seated (Max) 0.091 2.30mm
Length 5.7912mm
Width 5.207mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
