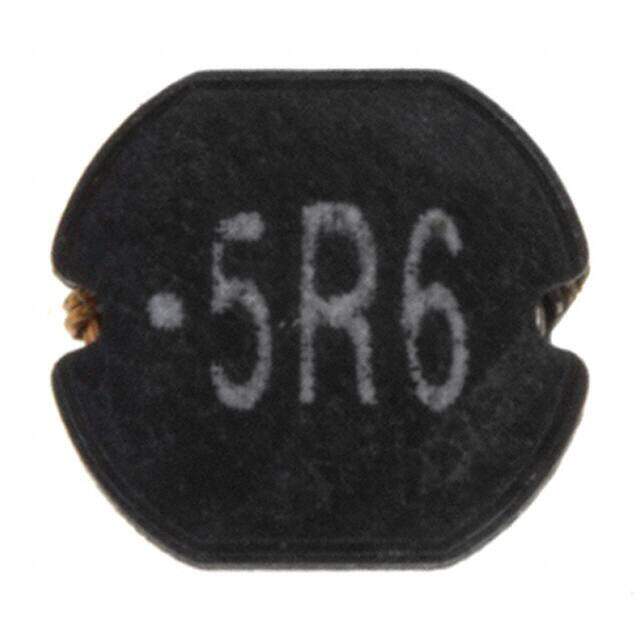

7447745056
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 5.6UH 2.3A 78 MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.425314
≥1 USD $1.425314
≥10 USD $1.344639
≥100 USD $1.268526
≥500 USD $1.196715
≥1000 USD $1.12898
Inventory: 7376
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 2.3A
Shielding Unshielded
Inductance 5.6μH
DC Resistance (DCR) 78mOhm Max
Frequency - Self Resonant 32MHz
Inductance Frequency - Test 100kHz
Current - Saturation 2.1A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.091 2.30mm
Compliance
RoHS Status ROHS3 Compliant
