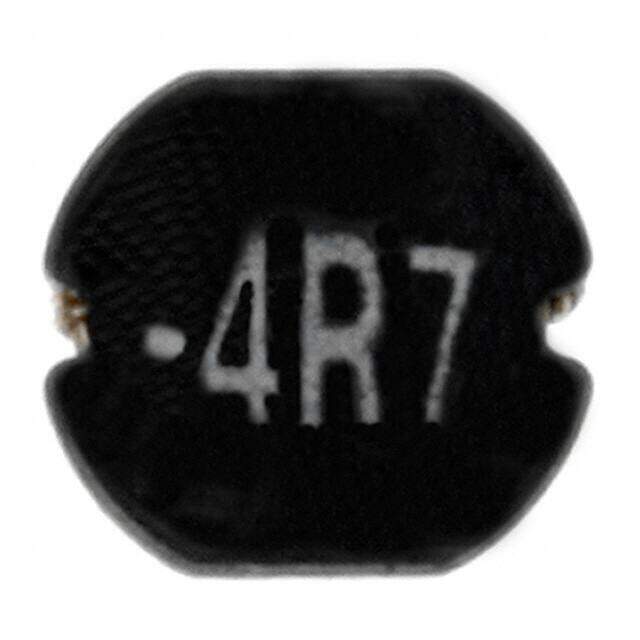

7447745047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.46286
≥1 USD $1.46286
≥10 USD $1.380061
≥100 USD $1.301935
≥500 USD $1.228241
≥1000 USD $1.158721
Inventory: 1111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 65mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.5A
Shielding Unshielded
Depth 5.8mm
Current Rating 2.5A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 65mOhm Max
Max DC Current 2.5A
Frequency - Self Resonant 42MHz
Inductance Frequency - Test 100kHz
Current - Saturation 2.4A
Inductance Tolerance 20%
RMS Current (Irms) 2.5A
Dimensions
Height 2mm
Height Seated (Max) 0.091 2.30mm
Length 5.7912mm
Width 5.207mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
