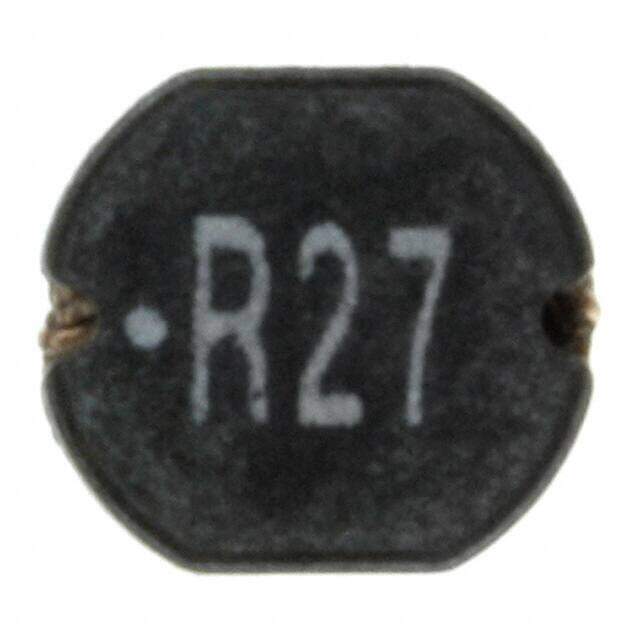

74477450027
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 270nH
PDF
/
Inventory: 1130
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 5mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 8.2A
Shielding Unshielded
Depth 5.8mm
Current Rating 8.2A
Inductance 270nH
Test Frequency 100kHz
DC Resistance (DCR) 5mOhm Max
Max DC Current 8.2A
Frequency - Self Resonant 180MHz
Inductance Frequency - Test 100kHz
Current - Saturation 9.5A
Inductance Tolerance 20%
RMS Current (Irms) 8.2A
Dimensions
Height 2mm
Height Seated (Max) 0.091 2.30mm
Length 5.7912mm
Width 5.207mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
