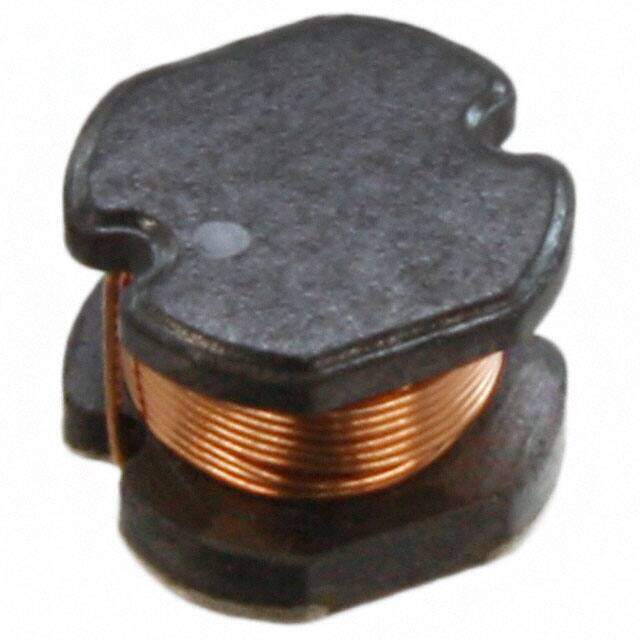

744774218 image
Favorite
744774218 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 180UH 420MA 1.38 OHM
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.76545
≥1 USD $2.76545
≥10 USD $2.26955
≥100 USD $2.1983
≥500 USD $2.12705
≥1000 USD $2.05675
Inventory: 1381
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 420mA
Shielding Unshielded
Inductance 180μH
DC Resistance (DCR) 1.38Ohm Max
Frequency - Self Resonant 5.8MHz
Inductance Frequency - Test 10kHz
Current - Saturation 500mA
Inductance Tolerance 10%

Dimensions

Height Seated (Max) 0.191 4.85mm

Compliance

RoHS Status ROHS3 Compliant
