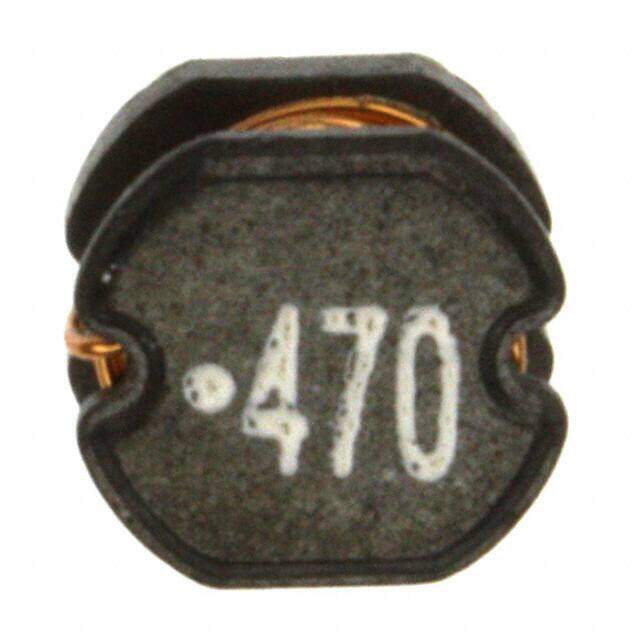

744774147
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 47muH
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 1094
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.207mm
Length 5.8mm
Height Seated (Max) 0.191 4.85mm
Height 4.5mm
Technical
Series Resistance 260mOhm
RMS Current (Irms) 860mA
Inductance Tolerance 15%
Current - Saturation 1A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 11.5MHz
Max DC Current 860mA
DC Resistance (DCR) 370mOhm Max
Test Frequency 10kHz
Inductance 47μH
Current Rating 860mA
Depth 5.2mm
Shielding Unshielded
Current Rating (Amps) 860mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 370mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
