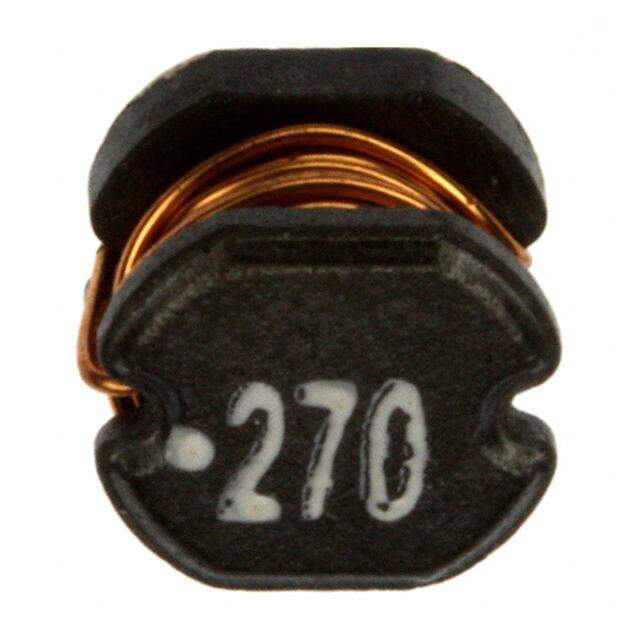

744774127 image
Favorite
744774127 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 27UH 1.19A 200 MOHM
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.638875
≥1 USD $1.638875
≥10 USD $1.546115
≥100 USD $1.458589
≥500 USD $1.376029
≥1000 USD $1.298142
Inventory: 1100
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.191 4.85mm

Technical

Inductance Tolerance 20%
Current - Saturation 1.4A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 15MHz
DC Resistance (DCR) 200mOhm Max
Inductance 27μH
Shielding Unshielded
Current Rating (Amps) 1.19A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks

Alternative Model
