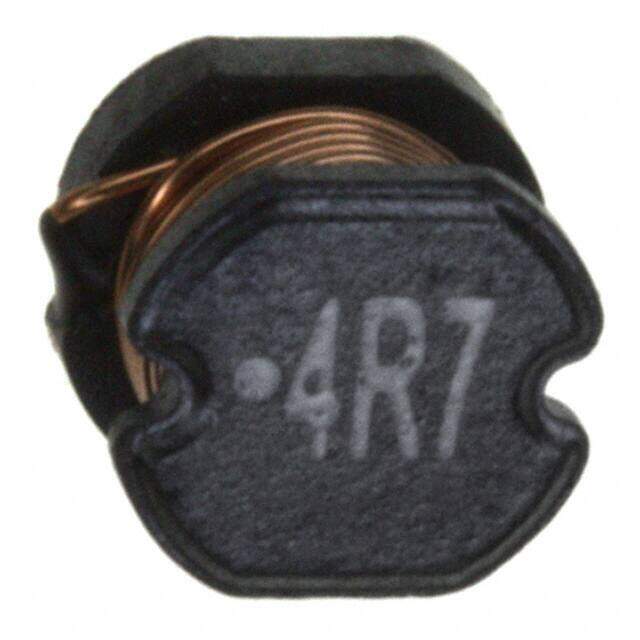

744774047 image
Favorite
744774047 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6456
≥1 USD $1.6456
≥10 USD $1.57608
≥100 USD $1.41856
≥500 USD $1.31296
≥1000 USD $1.26104
≥3000 USD $1.15544
Inventory: 1105
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 71mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3A
Shielding Unshielded
Current Rating 3A
Inductance 4.7μH
Test Frequency 10kHz
DC Resistance (DCR) 71mOhm Max
Max DC Current 3A
Frequency - Self Resonant 33MHz
Inductance Frequency - Test 10kHz
Current - Saturation 5.5A
Inductance Tolerance 20%
RMS Current (Irms) 3A

Dimensions

Height 4.5mm
Height Seated (Max) 0.191 4.85mm
Length 5.7912mm
Width 5.207mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
