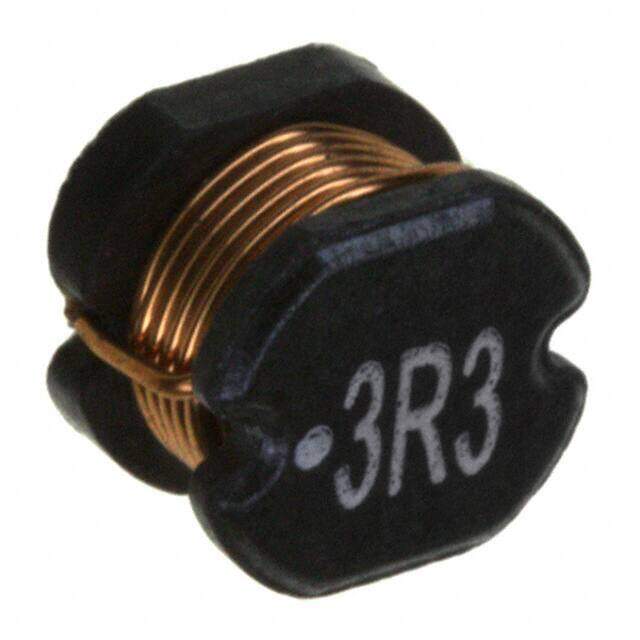

744774033 image
Favorite
744774033 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 3.3muH
PDF
/
Buying Options
Total Price: USD $12.22
Unit Price: USD $12.2208
≥1 USD $12.2208
≥10 USD $10.02725
≥100 USD $9.71375
≥500 USD $9.40025
≥1000 USD $9.08675
Inventory: 1134
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 60mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 4A
Shielding Unshielded
Current Rating 4A
Inductance 3.3μH
Test Frequency 10kHz
DC Resistance (DCR) 60mOhm Max
Max DC Current 4A
Frequency - Self Resonant 43MHz
Inductance Frequency - Test 10kHz
Current - Saturation 7.5A
Inductance Tolerance 20%
RMS Current (Irms) 4A

Dimensions

Height 4.5mm
Height Seated (Max) 0.191 4.85mm
Length 5.7912mm
Width 5.207mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
