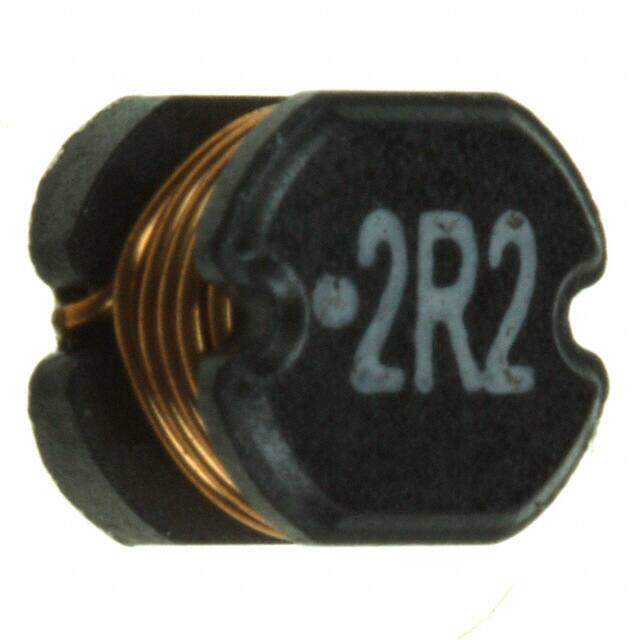

744774022 image
Favorite
744774022 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8303
≥1 USD $0.8303
≥10 USD $0.68115
≥100 USD $0.66025
≥500 USD $0.6384
≥1000 USD $0.6175
Inventory: 1184
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 5.207mm
Length 5.7912mm
Height Seated (Max) 0.191 4.85mm
Height 4.5mm

Technical

RMS Current (Irms) 4.6A
Inductance Tolerance 20%
Q Factor 35
Current - Saturation 8.2A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 54MHz
Max DC Current 4.6A
DC Resistance (DCR) 41mOhm Max
Test Frequency 10kHz
Inductance 2.2μH
Current Rating 4.6A
Shielding Unshielded
Current Rating (Amps) 4.6A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 41mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
