744773156
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

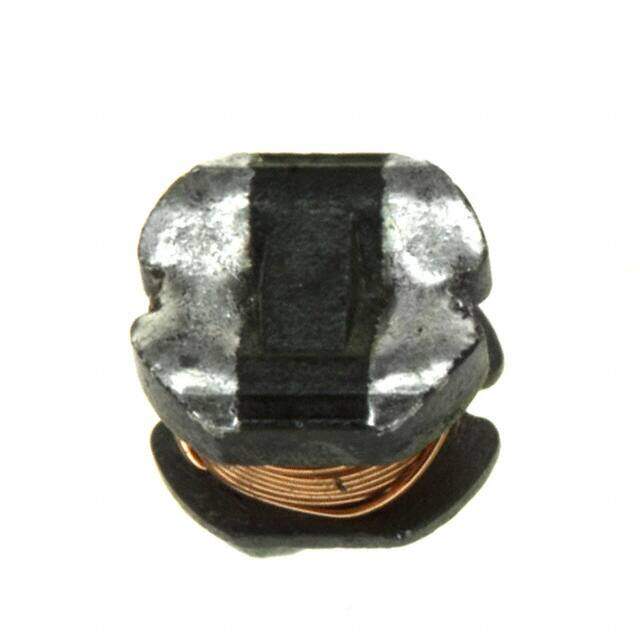

WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 56muH
PDF
/
Inventory: 8399
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 937mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 640mA
Shielding Unshielded
Current Rating 640mA
Inductance 56μH
Test Frequency 10kHz
DC Resistance (DCR) 937mOhm Max
Max DC Current 640mA
Frequency - Self Resonant 16MHz
Inductance Frequency - Test 10kHz
Current - Saturation 750mA
Inductance Tolerance 10%
RMS Current (Irms) 640mA
Dimensions
Height 3.2mm
Height Seated (Max) 0.138 3.50mm
Length 4.4958mm
Width 3.9878mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
