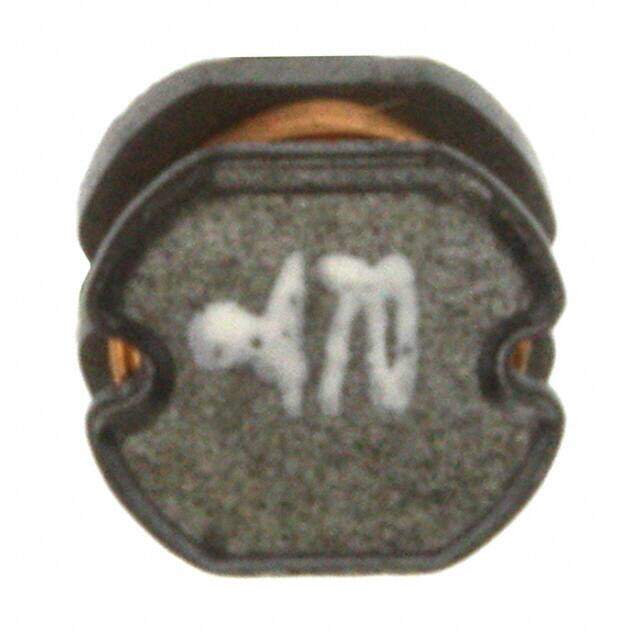

744773147 image
Favorite
744773147 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 47muH
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.0735
≥1 USD $1.0735
≥10 USD $0.88065
≥100 USD $0.8531
≥500 USD $0.82555
≥1000 USD $0.798
Inventory: 1128
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 844mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 680mA
Shielding Unshielded
Depth 4mm
Current Rating 680mA
Inductance 47μH
Test Frequency 1kHz
DC Resistance (DCR) 844mOhm Max
Max DC Current 680mA
Frequency - Self Resonant 17MHz
Inductance Frequency - Test 10kHz
Current - Saturation 770mA
Inductance Tolerance 10%
RMS Current (Irms) 680mA
Series Resistance 523mOhm

Dimensions

Height 3.2mm
Height Seated (Max) 0.138 3.50mm
Length 4.5mm
Width 3.9878mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
