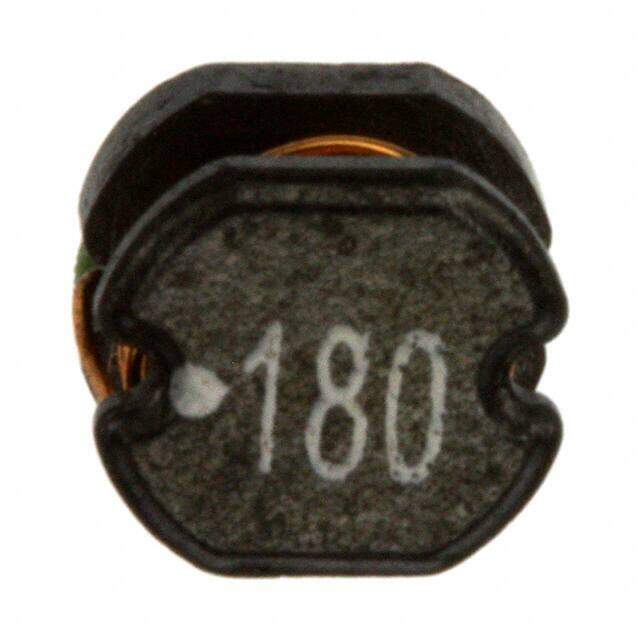

744773118
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 18muH
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.51272
≥100 USD $1.36224
≥500 USD $1.26104
≥1000 USD $1.21
≥3000 USD $1.10968
Inventory: 1152
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 338mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.1A
Shielding Unshielded
Current Rating 1.1A
Inductance 18μH
Test Frequency 10kHz
DC Resistance (DCR) 338mOhm Max
Max DC Current 1.1A
Frequency - Self Resonant 23MHz
Inductance Frequency - Test 10kHz
Current - Saturation 1.29A
Inductance Tolerance 10%
RMS Current (Irms) 1.1A
Dimensions
Height 3.2mm
Height Seated (Max) 0.138 3.50mm
Length 4.4958mm
Width 4mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
