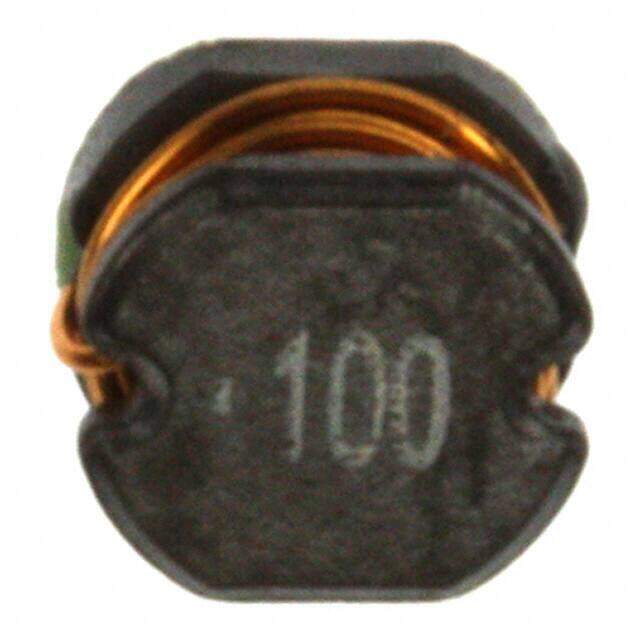

74477310
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 10muH
PDF
/
Buying Options
Total Price: USD $17.83
Unit Price: USD $17.8296
≥1 USD $17.8296
≥10 USD $14.63
≥100 USD $14.1721
≥500 USD $13.71515
≥1000 USD $13.2582
Inventory: 1146
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 3.9878mm
Length 4.5mm
Height Seated (Max) 0.138 3.50mm
Height 3.2mm
Technical
Series Resistance 118mOhm
RMS Current (Irms) 1.45A
Inductance Tolerance 20%
Current - Saturation 1.74A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 37MHz
Max DC Current 1.45A
DC Resistance (DCR) 182mOhm Max
Test Frequency 1kHz
Inductance 10μH
Current Rating 1.45A
Depth 4mm
Shielding Unshielded
Current Rating (Amps) 1.45A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 182mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
