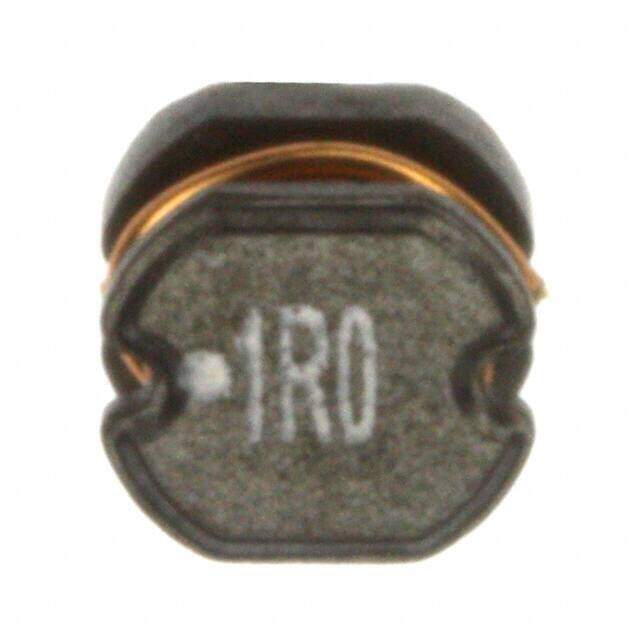

744773068
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 6.8muH
PDF
/
Buying Options
Total Price: USD $15.21
Unit Price: USD $15.21045
≥1 USD $15.21045
≥10 USD $12.48015
≥100 USD $12.09065
≥500 USD $11.7002
≥1000 USD $11.3107
Inventory: 1162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 131mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.54A
Shielding Unshielded
Current Rating 1.54A
Inductance 6.8μH
Test Frequency 10kHz
DC Resistance (DCR) 131mOhm Max
Max DC Current 1.54A
Frequency - Self Resonant 41MHz
Inductance Frequency - Test 10kHz
Current - Saturation 2.1A
Inductance Tolerance 20%
RMS Current (Irms) 1.54A
Dimensions
Height 3.2mm
Height Seated (Max) 0.138 3.50mm
Length 4.4958mm
Width 3.9878mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
