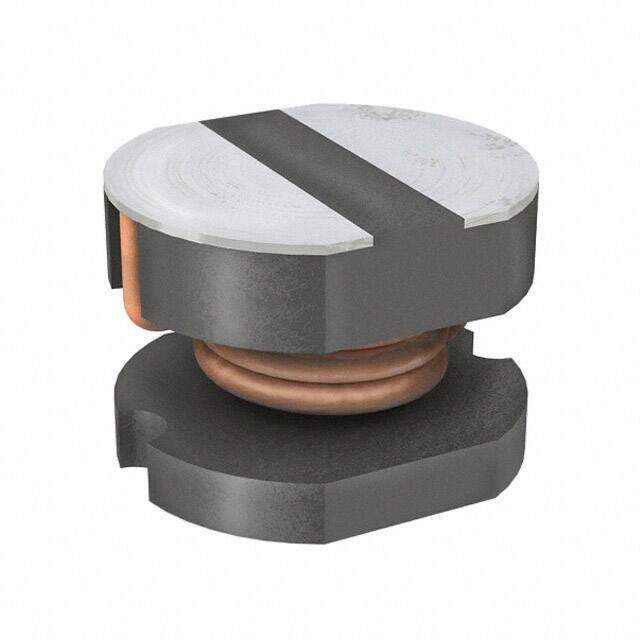

744773027
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2.7μH Unshielded Wirewound Inductor 2.25A 79mOhm Max Nonstandard
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 1124
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.138 3.50mm
Technical
Current - Saturation 2.97A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 72MHz
DC Resistance (DCR) 79mOhm Max
Inductance 2.7μH
Shielding Unshielded
Current Rating (Amps) 2.25A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series WE-PD2
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
