744773014
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

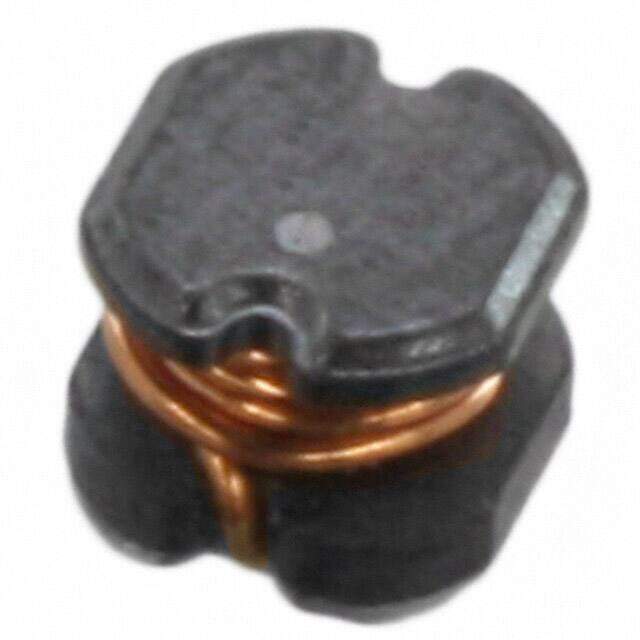

WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 1.4muH
PDF
/
Buying Options
Total Price: USD $1.3
Unit Price: USD $1.298362
≥1 USD $1.298362
≥10 USD $1.224861
≥100 USD $1.155537
≥500 USD $1.090133
≥1000 USD $1.028424
Inventory: 1125
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 56mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.4A
Shielding Unshielded
Current Rating 3.4A
Inductance 1.4μH
Test Frequency 10kHz
DC Resistance (DCR) 56mOhm Max
Max DC Current 3.4A
Frequency - Self Resonant 103MHz
Inductance Frequency - Test 10kHz
Current - Saturation 5.04A
Inductance Tolerance 20%
RMS Current (Irms) 3.4A
Dimensions
Height 3.2mm
Height Seated (Max) 0.138 3.50mm
Length 4mm
Width 4.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
