744772820
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

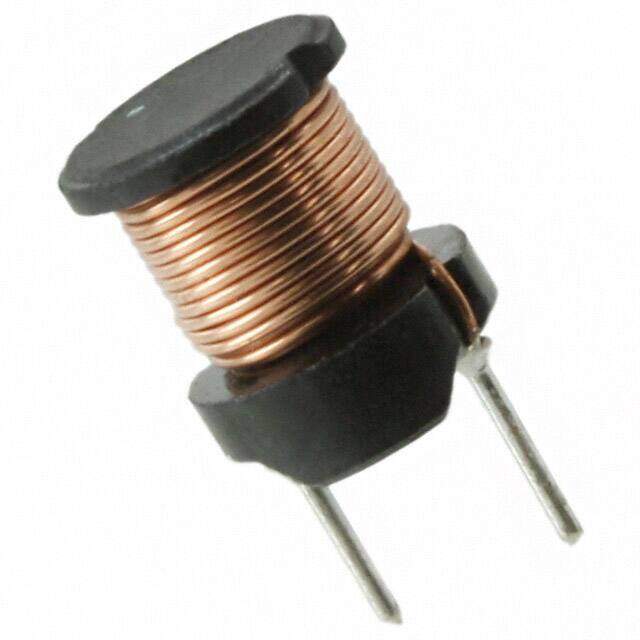

WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 82muH
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.845779
≥1 USD $0.845779
≥10 USD $0.797905
≥100 USD $0.752741
≥500 USD $0.710134
≥1000 USD $0.669935
Inventory: 1148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1A
Shielding Unshielded
Current Rating 1A
Lead Pitch 5mm
Inductance 82μH
Test Frequency 1kHz
DC Resistance (DCR) 160mOhm Max
Max DC Current 1A
Frequency - Self Resonant 6.1MHz
Inductance Frequency - Test 1kHz
Current - Saturation 1.9A
Inductance Tolerance 10%
RMS Current (Irms) 1A
Series Resistance 160mOhm
Dimensions
Diameter 8.3mm
Height 9.5mm
Height Seated (Max) 0.394 10.00mm
Length 9.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
