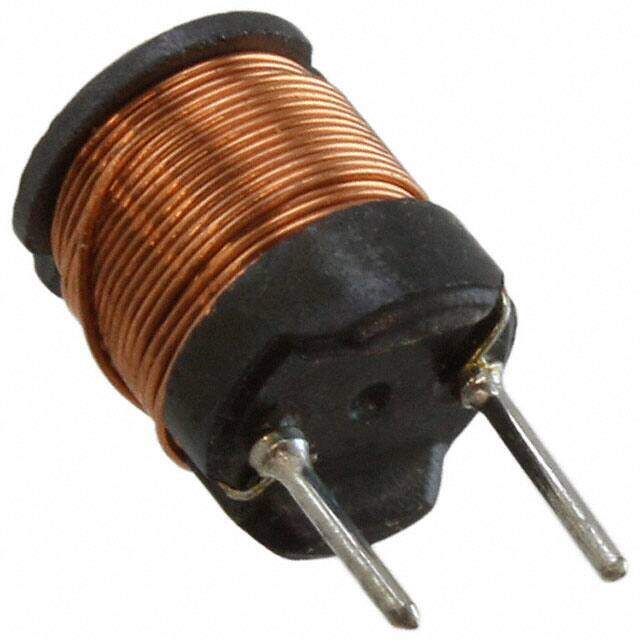

744772471 image
Favorite
744772471 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 470UH 430MA 890 MOHM
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.85468
≥1 USD $0.85468
≥10 USD $0.806303
≥100 USD $0.760667
≥500 USD $0.717607
≥1000 USD $0.676994
Inventory: 1144
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 890mOhm
Current Rating (Amps) 430mA
Shielding Unshielded
Inductance 470μH
DC Resistance (DCR) 890mOhm Max
Frequency - Self Resonant 2.6MHz
Inductance Frequency - Test 1kHz
Current - Saturation 800mA
Inductance Tolerance 10%

Dimensions

Height Seated (Max) 0.394 10.00mm

Compliance

RoHS Status ROHS3 Compliant
