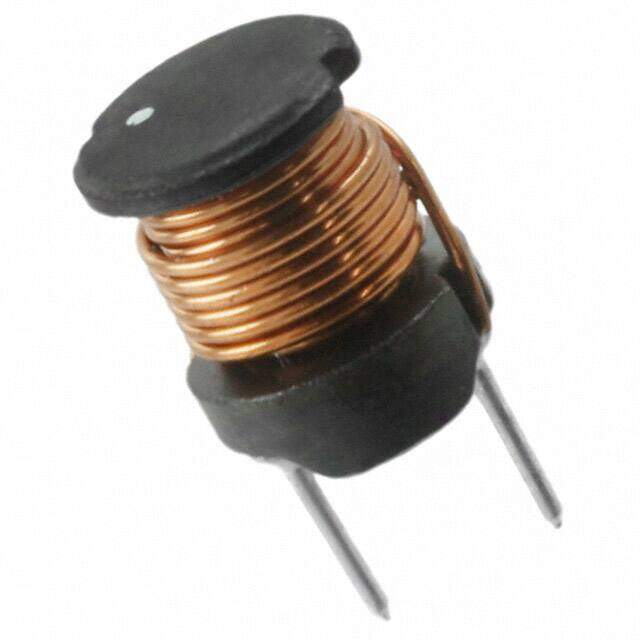

744772220
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 22muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.814929
≥1 USD $0.814929
≥10 USD $0.768799
≥100 USD $0.725285
≥500 USD $0.684233
≥1000 USD $0.645502
Inventory: 1119
Minimum: 1
-
+
Technical Details
Technical
Inductance Frequency - Test 1kHz
Current - Saturation 3.6A
Inductance Tolerance 10%
RMS Current (Irms) 2.3A
Series Resistance 55mOhm
Frequency - Self Resonant 12.4MHz
Max DC Current 2.3A
DC Resistance (DCR) 55mOhm Max
Test Frequency 1kHz
Inductance 22μH
Lead Pitch 5mm
Current Rating 2.3A
Shielding Unshielded
Current Rating (Amps) 2.3A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 55mOhm
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series WE-TI
Packaging Tray
Operating Temperature -40°C~125°C
Dimensions
Diameter 8.3mm
Height 9.4996mm
Height Seated (Max) 0.394 10.00mm
Length 9.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Radial, Through Hole
Supply Chain
Factory Lead Time 15 Weeks
