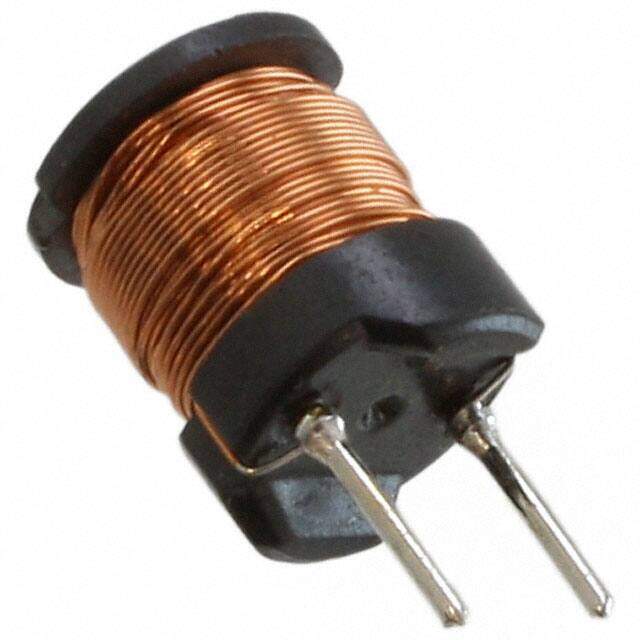

744772152 image
Favorite
744772152 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 1.5mH
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.788889
≥1 USD $0.788889
≥10 USD $0.744241
≥100 USD $0.702106
≥500 USD $0.662372
≥1000 USD $0.624874
Inventory: 1106
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 300mA
Shielding Unshielded
Current Rating 300mA
Lead Pitch 5mm
Inductance 1.5mH
Test Frequency 1kHz
DC Resistance (DCR) 3Ohm Max
Max DC Current 300mA
Frequency - Self Resonant 1.3MHz
Inductance Frequency - Test 1kHz
Current - Saturation 400mA
Inductance Tolerance 5%
RMS Current (Irms) 300mA

Dimensions

Diameter 7.8mm
Height 9.4996mm
Height Seated (Max) 0.394 10.00mm
Length 9.5mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
