744772102
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

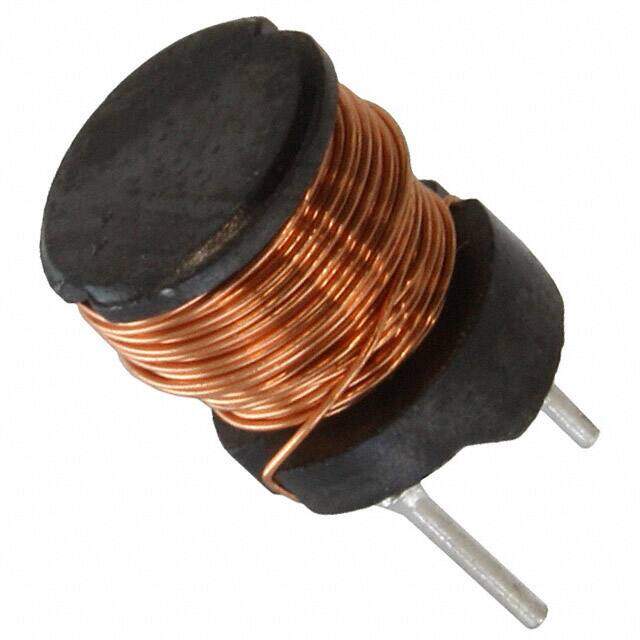

WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 1mH
PDF
/
Buying Options
Total Price: USD $8.05
Unit Price: USD $8.0484
≥1 USD $8.0484
≥10 USD $6.6044
≥100 USD $6.3973
≥500 USD $6.19115
≥1000 USD $5.985
Inventory: 1106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 1.84Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 300mA
Shielding Unshielded
Current Rating 300mA
Lead Pitch 5mm
Inductance 1mH
Test Frequency 1kHz
DC Resistance (DCR) 1.84Ohm Max
Max DC Current 300mA
Frequency - Self Resonant 1.6MHz
Inductance Frequency - Test 1kHz
Current - Saturation 500mA
Inductance Tolerance 10%
RMS Current (Irms) 300mA
Dimensions
Diameter 7.8mm
Height 9.4996mm
Height Seated (Max) 0.394 10.00mm
Length 9.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
