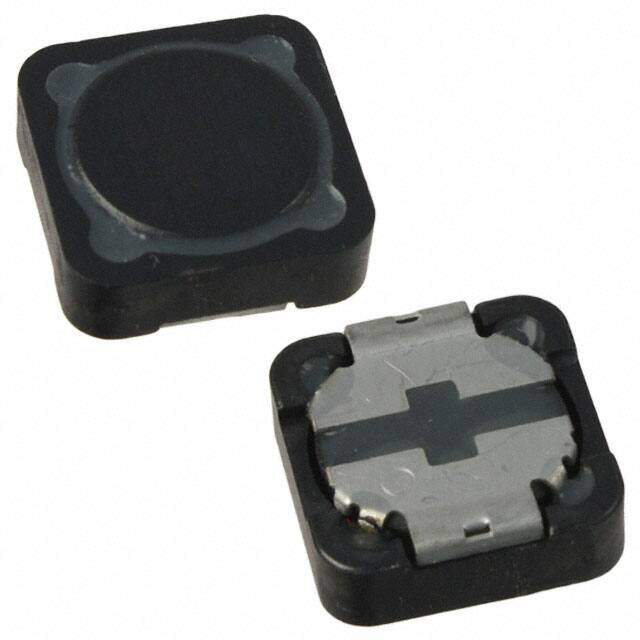

7447715001
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 1.8muH
PDF
/
Buying Options
Total Price: USD $11.8
Unit Price: USD $11.7952
≥1 USD $11.7952
≥10 USD $9.6786
≥100 USD $9.37555
≥500 USD $9.07345
≥1000 USD $8.77135
Inventory: 7101
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 0.177 4.50mm
Height 4.5mm
Technical
RMS Current (Irms) 7.6A
Inductance Tolerance 30%
Current - Saturation 10.2A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 76MHz
Max DC Current 7.6A
DC Resistance (DCR) 9.5mOhm Max
Test Frequency 100kHz
Inductance 1.8μH
Current Rating 7.6A
Depth 12mm
Shielding Shielded
Current Rating (Amps) 7.6A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 9.5mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
