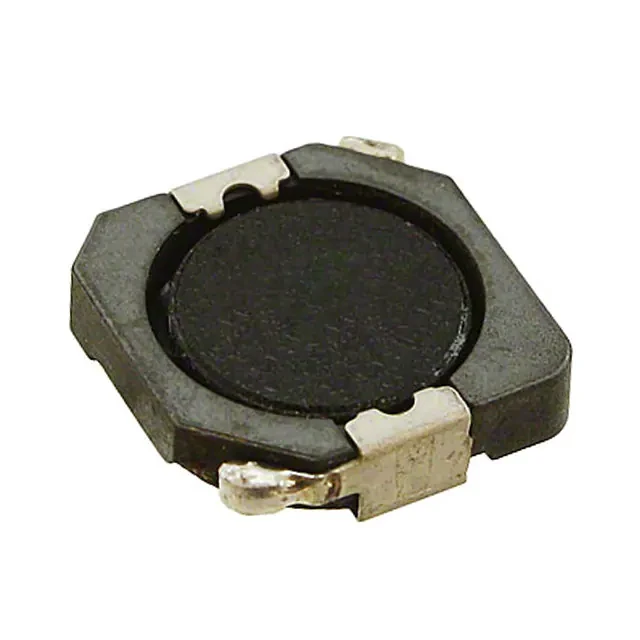

7447713015 image
Favorite
7447713015 image
Favorite

7447713015

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Performance Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 1.5muH
PDF
/
Buying Options
Total Price: USD $1.96
Unit Price: USD $1.9624
≥1 USD $1.9624
≥10 USD $1.8392
≥100 USD $1.68872
≥500 USD $1.48192
≥1000 USD $1.36048
Inventory: 990
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 10mm
Length 10mm
Height Seated (Max) 0.118 3.00mm
Height 3mm

Technical

Series Resistance 16mOhm
RMS Current (Irms) 6.2A
Inductance Tolerance 30%
Current - Saturation 9.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 75MHz
Max DC Current 6.2A
DC Resistance (DCR) 16mOhm Max
Test Frequency 100kHz
Inductance 1.5μH
Current Rating 6.2A
Depth 10mm
Shielding Shielded
Current Rating (Amps) 6.2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 16mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Series WE-PD Performance
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
