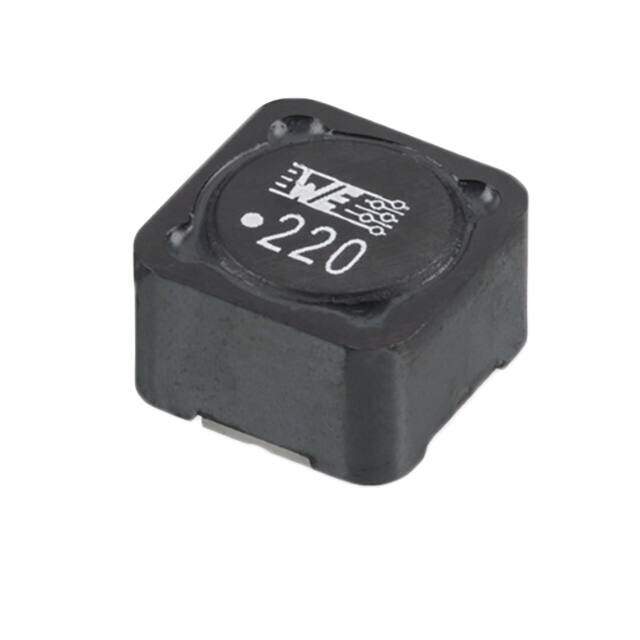

74477126
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Tape & Reel (TR) fixed air core inductor -40C~125C 2.3MHz 1.2Ohm Max 680muH
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.817925
≥1 USD $1.817925
≥10 USD $1.715017
≥100 USD $1.617951
≥500 USD $1.526363
≥1000 USD $1.439967
Inventory: 1135
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 0.236 6.00mm
Height 6mm
Technical
Series Resistance 1.2Ohm
RMS Current (Irms) 550mA
Inductance Tolerance 20%
Current - Saturation 680mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 2.3MHz
Max DC Current 550mA
DC Resistance (DCR) 1.2Ohm Max
Test Frequency 1kHz
Inductance 680μH
Current Rating 550mA
Depth 12mm
Shielding Shielded
Current Rating (Amps) 550mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 1.2Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 4.535924g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
