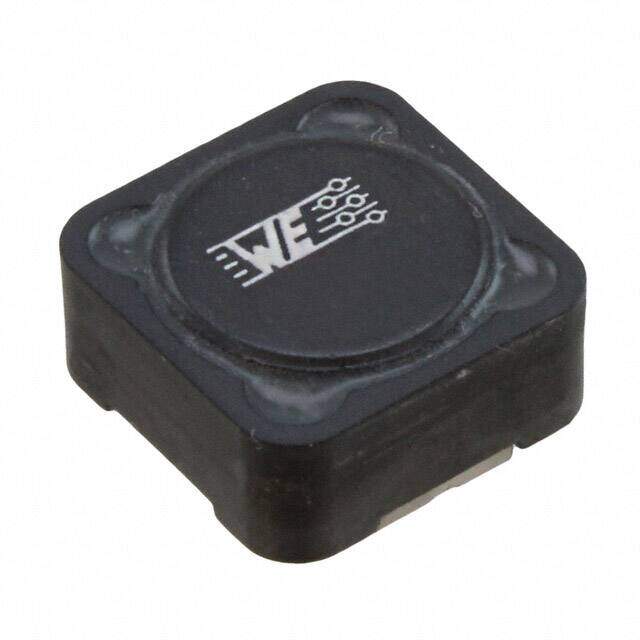

744771006
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 6.8UH 6.25A 22 MOHM
PDF
/
Buying Options
Total Price: USD $1.75
Unit Price: USD $1.751299
≥1 USD $1.751299
≥10 USD $1.652167
≥100 USD $1.558653
≥500 USD $1.470424
≥1000 USD $1.387193
Inventory: 1157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 6.25A
Shielding Shielded
Inductance 6.8μH
DC Resistance (DCR) 22mOhm Max
Frequency - Self Resonant 27MHz
Inductance Frequency - Test 1kHz
Current - Saturation 6.4A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.236 6.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
