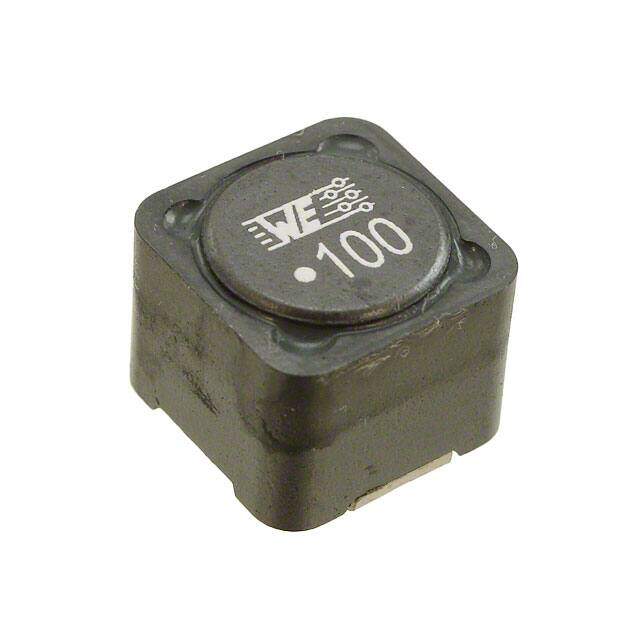

7447709100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.51015
≥1 USD $0.51015
≥10 USD $0.41895
≥100 USD $0.40565
≥500 USD $0.39235
≥1000 USD $0.38
Inventory: 1336
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 4.535924g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 21mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 7.1A
Shielding Shielded
Depth 12mm
Current Rating 7.1A
Case Code (Metric) 3225
Case Code (Imperial) 1210
Lead Pitch 7mm
Inductance 10μH
Test Frequency 1kHz
DC Resistance (DCR) 21mOhm Max
Max DC Current 7.1A
Frequency - Self Resonant 21MHz
Inductance Frequency - Test 1kHz
Current - Saturation 10.5A
Inductance Tolerance 20%
RMS Current (Irms) 7.1A
Series Resistance 21mOhm
Dimensions
Height 10mm
Height Seated (Max) 0.394 10.00mm
Length 12mm
Width 12mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
