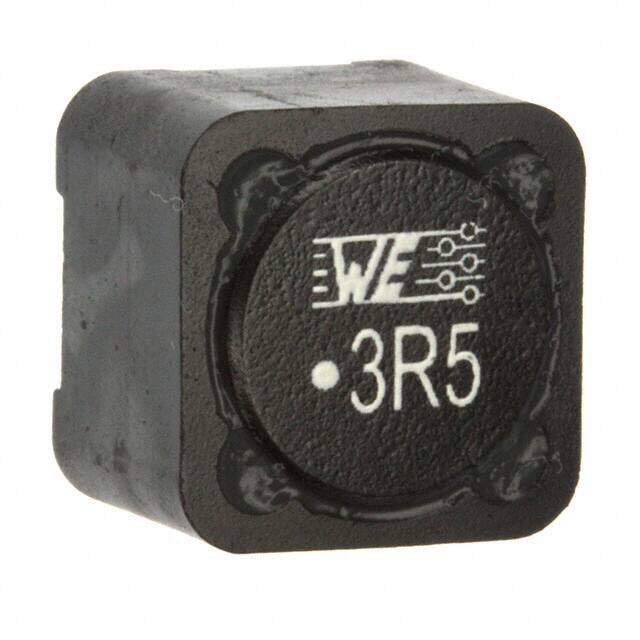

7447709003

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 3.5UH 11A 9 MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.814468
≥1 USD $1.814468
≥10 USD $1.711757
≥100 USD $1.614863
≥500 USD $1.523459
≥1000 USD $1.437225
Inventory: 1112
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.394 10.00mm

Technical

Inductance Tolerance 20%
Current - Saturation 16.5A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 45MHz
DC Resistance (DCR) 9mOhm Max
Inductance 3.5μH
Shielding Shielded
Current Rating (Amps) 11A
Resistance 6mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
