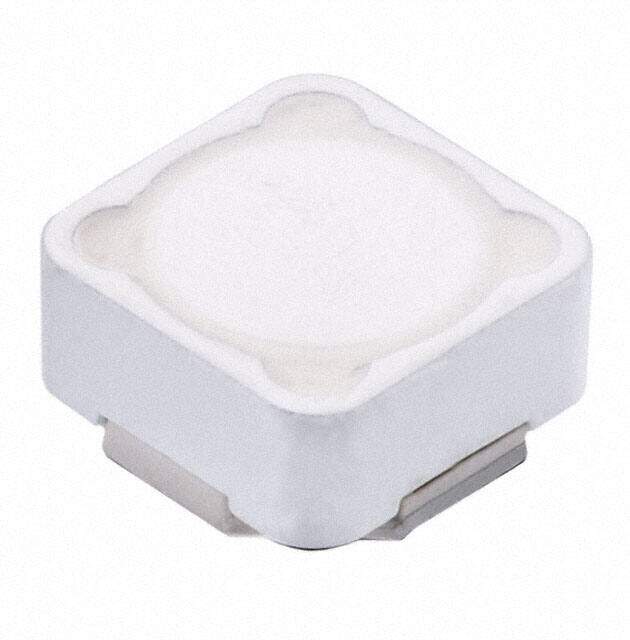

74477030W image
Favorite
74477030W image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PDW Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 1mH
PDF
/
Inventory: 1836
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 12mm
Length 11.9888mm
Height Seated (Max) 0.335 8.50mm
Height 8.5mm

Technical

RMS Current (Irms) 600mA
Inductance Tolerance 20%
Current - Saturation 700mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 1.8MHz
Max DC Current 600mA
DC Resistance (DCR) 1.82Ohm Max
Test Frequency 100kHz
Inductance 1mH
Current Rating 600mA
Shielding Shielded
Current Rating (Amps) 600mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PDW
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
