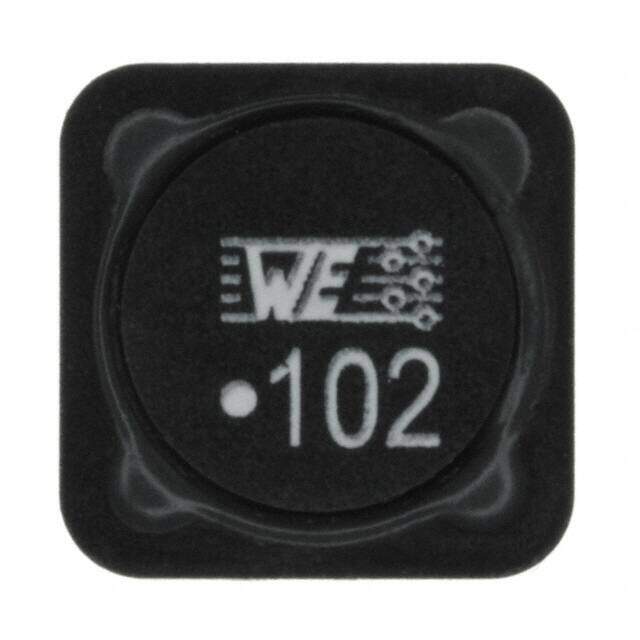

74477030
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 1mH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6859
≥1 USD $0.6859
≥10 USD $0.56335
≥100 USD $0.5453
≥500 USD $0.5282
≥1000 USD $0.51015
Inventory: 45004
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 4.535924g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 1.82Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 600mA
Shielding Shielded
Depth 12mm
Current Rating 600mA
Inductance 1mH
Test Frequency 1kHz
DC Resistance (DCR) 1.82Ohm Max
Max DC Current 600mA
Frequency - Self Resonant 1.8MHz
Inductance Frequency - Test 1kHz
Current - Saturation 700mA
Inductance Tolerance 20%
RMS Current (Irms) 600mA
Series Resistance 1.82Ohm
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Length 12mm
Width 12mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
