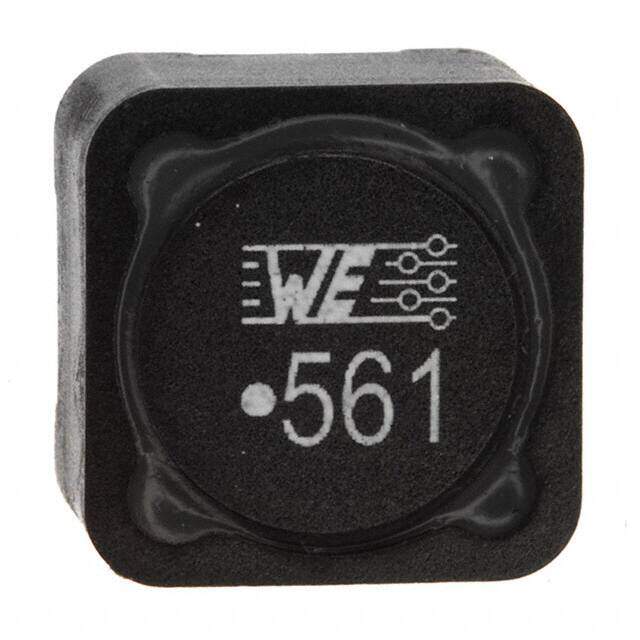

744770256 image
Favorite
744770256 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 560UH 800MA 1.07 OHM
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.861854
≥1 USD $1.861854
≥10 USD $1.756464
≥100 USD $1.657038
≥500 USD $1.563255
≥1000 USD $1.474761
Inventory: 1141
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.315 8.00mm

Technical

Inductance Tolerance 20%
Current - Saturation 900mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 2.5MHz
DC Resistance (DCR) 1.07Ohm Max
Inductance 560μH
Shielding Shielded
Current Rating (Amps) 800mA
Resistance 593mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
