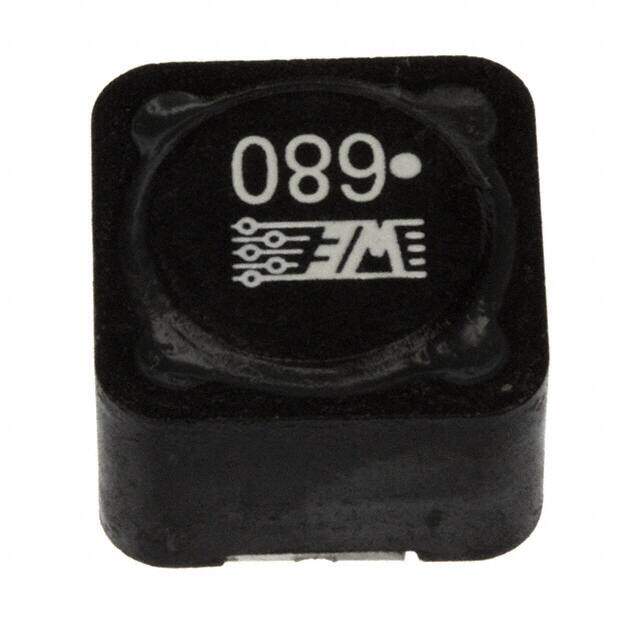

744770168
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 68muH
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5529
≥1 USD $0.5529
≥10 USD $0.4541
≥100 USD $0.43985
≥500 USD $0.4256
≥1000 USD $0.41135
Inventory: 8309
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 4.535924g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 140mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.3A
Shielding Shielded
Depth 12mm
Current Rating 2.3A
Inductance 68μH
Test Frequency 1kHz
DC Resistance (DCR) 140mOhm Max
Max DC Current 2.3A
Frequency - Self Resonant 6.4MHz
Inductance Frequency - Test 1kHz
Current - Saturation 2.5A
Inductance Tolerance 20%
RMS Current (Irms) 2.3A
Series Resistance 140mOhm
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Length 12mm
Width 12mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
