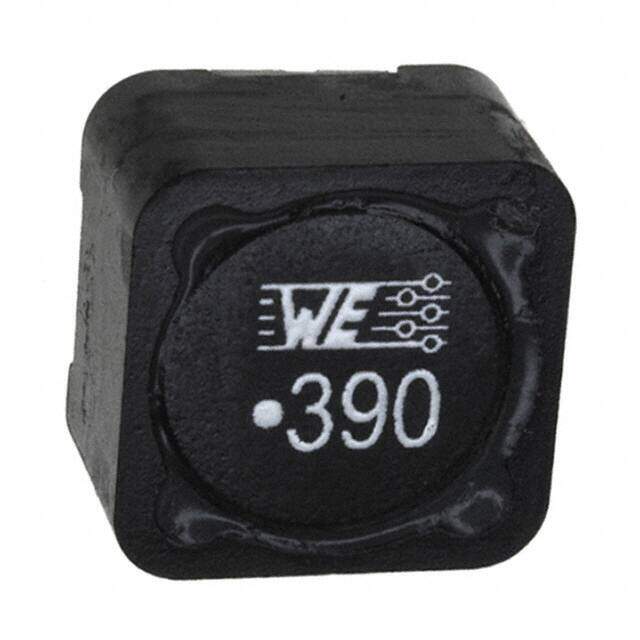

744770139 image
Favorite
744770139 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 39muH
PDF
/
Buying Options
Total Price: USD $4.42
Unit Price: USD $4.42415
≥1 USD $4.42415
≥10 USD $3.62995
≥100 USD $3.5169
≥500 USD $3.40385
≥1000 USD $3.28985
Inventory: 1147
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 12mm
Length 12mm
Height Seated (Max) 0.315 8.00mm
Height 8mm

Technical

Series Resistance 73mOhm
RMS Current (Irms) 3A
Inductance Tolerance 20%
Current - Saturation 3.5A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 8.2MHz
Max DC Current 3A
DC Resistance (DCR) 73mOhm Max
Test Frequency 1kHz
Inductance 39μH
Lead Pitch 7mm
Current Rating 3A
Depth 12mm
Shielding Shielded
Current Rating (Amps) 3A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 73mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
