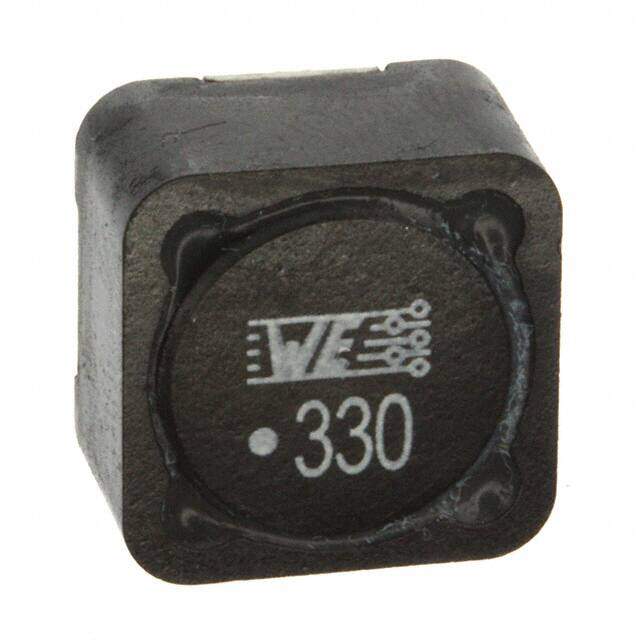

744770133
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 33muH
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.48355
≥1 USD $0.48355
≥10 USD $0.3971
≥100 USD $0.38475
≥500 USD $0.3724
≥1000 USD $0.36005
Inventory: 1389
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 0.315 8.00mm
Height 8mm
Technical
Series Resistance 64mOhm
RMS Current (Irms) 3.2A
Inductance Tolerance 20%
Current - Saturation 3.6A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 8.5MHz
Max DC Current 3.2A
DC Resistance (DCR) 64mOhm Max
Test Frequency 1kHz
Inductance 33μH
Lead Pitch 7mm
Current Rating 3.2A
Depth 12mm
Shielding Shielded
Current Rating (Amps) 3.2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 64mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
